Faith

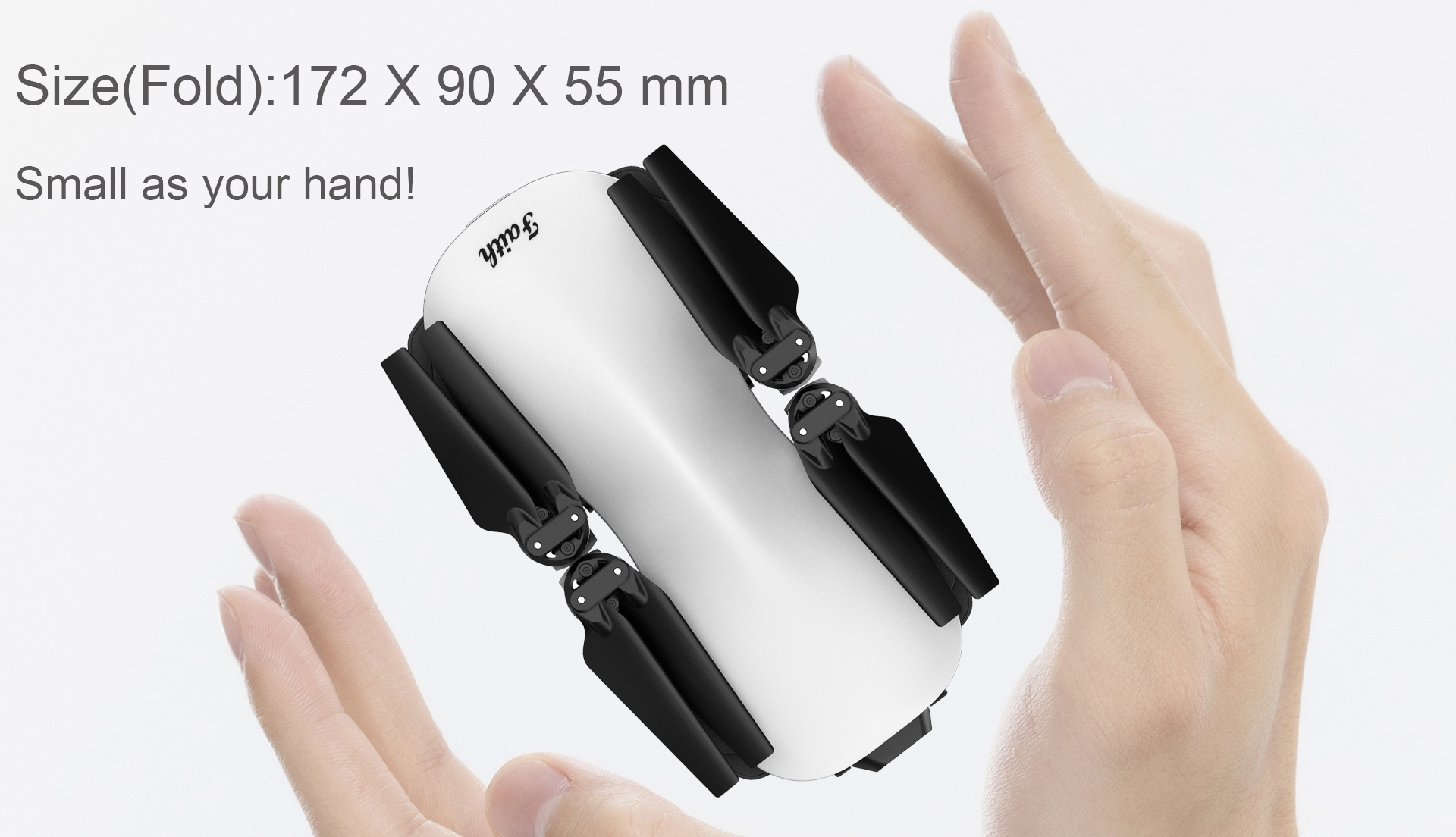

Size:
172 X 90 X 55 mm
Wheelbase:
216mm
Weight:
<433g
Max Ascent Speed:
2m/s
Max Descent Speed:
1.5m/s
Max Speed:
21.6km/h
Max Flight Altitude:
5000m

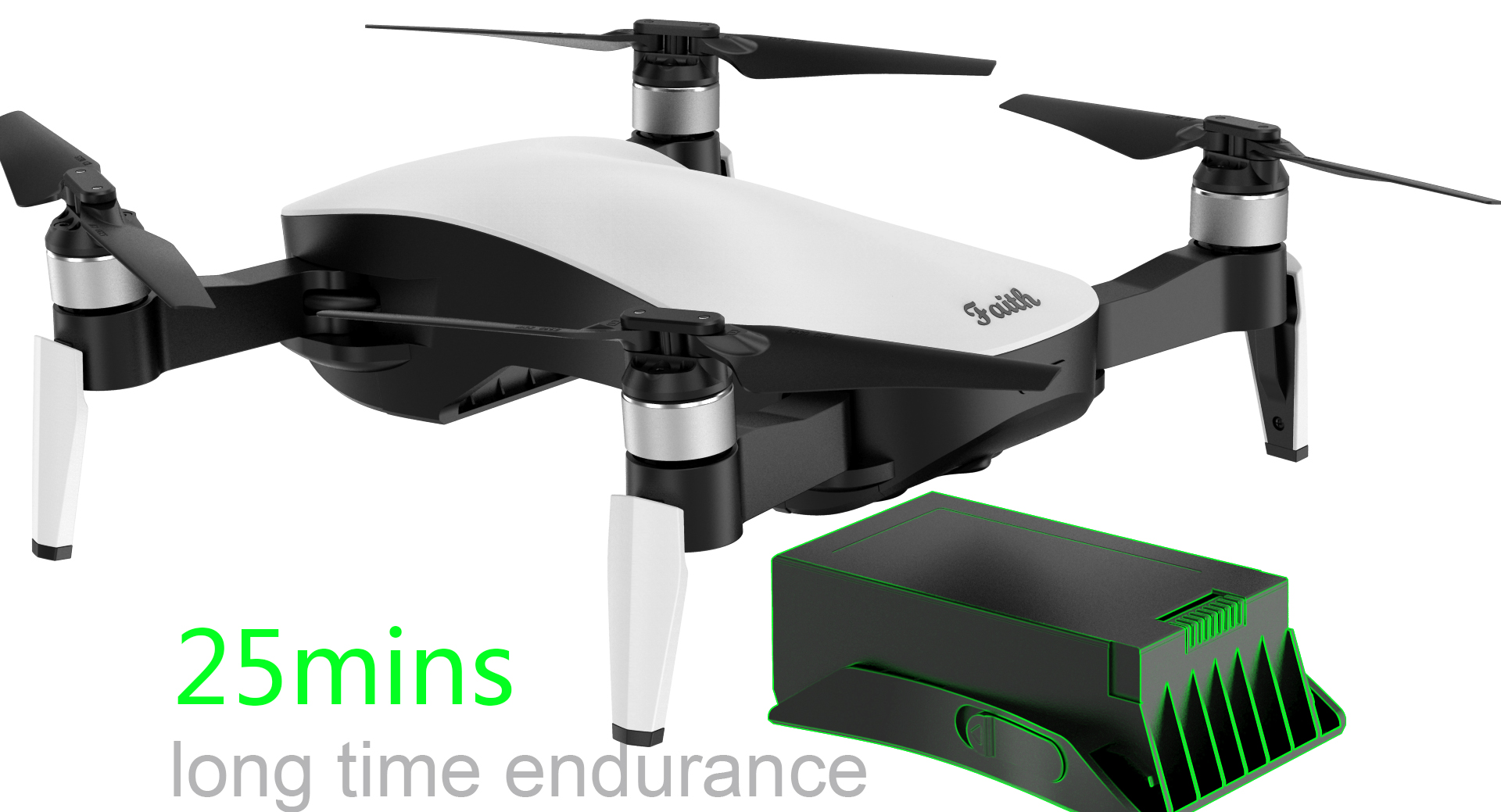

Max Flight Time:
25min(no wind)
Max Total Travel Distance:
9km
Operating Temperature:
0°C~40°C
Satellite Positioning Systems:
GPS/GLONASS
Hover Accuracy Range:
Vertical: +/- 0.5m; Horizonal:+/- 0.2m (ultrasonic & optical flow system works)
Operating Frequency:
FCC:5180MHz/5745MHz

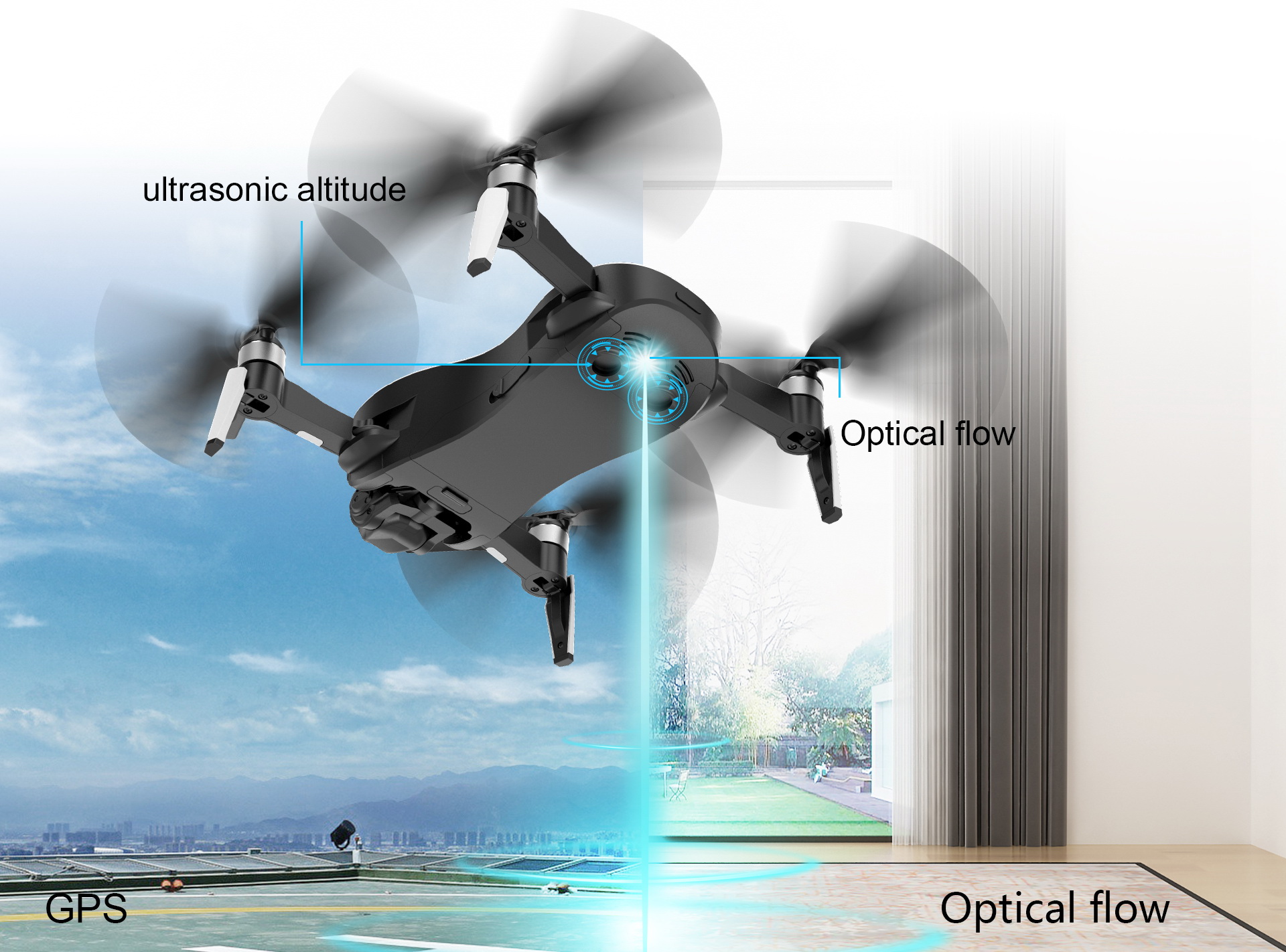

Optical Flow System
Optical Flow System:
Available
Operating Environment:
Surface with clear pattern and adequate lighting (lux > 15)
Velocity Range:
≤1.5 m/s at 6.6 ft (2 m) above ground
Altitude Range:
0.5~5m
Ultrasonic System
Ultrasonic S
ystem:
Available
Operating Environment:
except for surface of water or ground of absorbing material
Velocity Range:
≤ 3m/s
Altitude Range:
0.2~4.5m
3-Axis Gimbal
Controllable Range:
pitch:-90°~0°
Stabilization:
3-axis(pitch:+30/-100°,roll:± 30°,course:±15°)
Camera
Sensor:
1/3.2CMOS
Zoom in/out:
maximum 50 times
ISO Range:
Video:100-3200; Photo:100-1600
Image Size:
4096*3072
Video Recording Resolution:
FHD:1920*1080
Supported File System:
FAT32
Photo Format:
JPEG
Video Format:
MP4
Supported SD Cards:
Max capacity: 32GB. Class 10 or UHS-I rating required
Operating Temperature:
0°C~40°C
Battery
Capacity:
2400 mAh
Voltage:
11.4V
Battery Type:
LiPo 3S
Energy:
27.36Wh
Net Weight:
about 165g
Charging Temperature:
0°C~40°C
Charge Time:
<4.5h(with 5V 2A adapter)
APP /FPV
Mobile App:
C-Fly /Enjoy fly
Live View Quality:
720p
FPV Transmission Distance:
3000m(depends on environment)
Required Operating Systems:
iOS 9.0 or above; Android 5.0 or above
Charger
Input:
5V 2A
Output:
4.35V 0.7A×3
WiFi
Operating Frequency:
5G
Max Transmission Distance:
horizonal: 200m; vertical: 150m
Max Speed:
21.6 km/h
Max Ascent Speed:
2 m/s
Max Descent Speed:
1.5 m/s
Remote Controller
Operating Frequency:
5GHz/2.4G
Max Transmission Distance:
3000m(No barriers and signal interference)
Operating Temperature Range:
0°C~40°C
Transmitter Power (EIRP):
FCC:<=23dBm; CE:<=14dBm; SRRC:<=23dBm
Operating Current/Voltage:
300-500ma @ 3.7V
Supported Mobile Device Size:
Thickness Supported:6.5-8.5mm; Max length: 80mm
Port Types:
Micro USB
Charge Port:
Micro USB
Maximum Charge Power:
5w
